Description
Charger 2
It will fit in your hand after the first flight
The Charger 2 is the ultimate ‘pilot friendly’ paramotor wing. On the ground and in the air, the Charger 2 is easy to operate. Its easy operation and safety will be appreciated by a demanding pilot who is looking for a stable motor glider with a large range of speeds, resistant to canopy collapses, immediately responding to control commands. It will quickly fit into your hands during the first flights. With this glider you will enjoy the pleasures of flying. While flying this beauty you’ll notice right away that it is capable of performing everything you need to enjoy the air and not feel like your missing out.

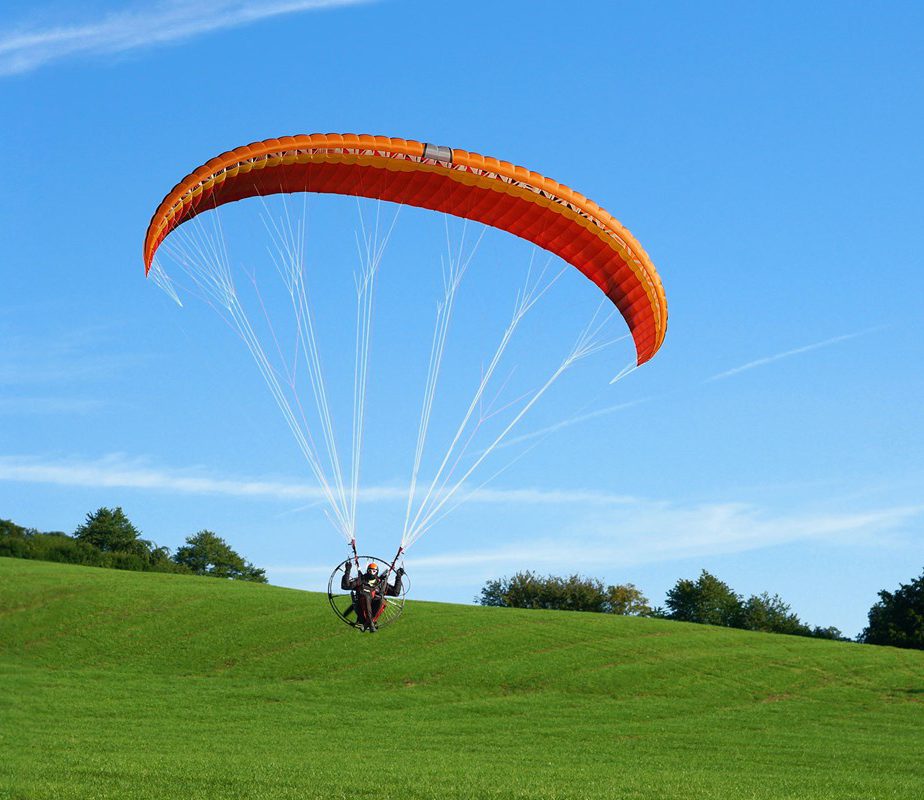

No Time Wasted on Launch – perfect for initial PPG training
The Charger 2, as with all MACPARA gliders, is designed with ease of launch in mind. Our R&D team was especially attentive to performance of the Charger 2 during take-off. You’ll look like a pro with its no-hassle launch characteristics that will have you airborne immediately after inflation. The way of inflating the canopy is smooth with a quick rising. The canopy stays over pilots head, with no tendency to pitch forvard or fall back. The buoyancy level is pleasant to read in the harness with acceleration and can be easily controlled by the steering lines. A light pull on the steering lines gets the pilot into the third dimension without sinking down.
Why the great performance?
The glider is undemanding and resistant to collapse even in rough air thanks to the customized reflex airfoils. New design of the Charger 2’s airfoil is resulting in exceptional penetration and in flight stability. The smooth shape of the airfoil nose is maintained by long lasting Mylar reinforcement combined with plastic rods. It features excellent stability throughout the full weight and speed range. The canopy has a dampened roll tendency, but offers good flexibility and agility in turns, and the Charger 2 will not overshoot or hang back. During extended flights, the moderate brake pressure allows for pleasant turns while progressively increasing toward the end of brake travel, providing a reserve of safety. With fully released trims, the steering forces increase significantly. With such trimmer settings, the glider can be controlled via the glider’s stabilizers using additional wing tip steering toggles (called WTST). Likewise, when using the speed system, or in combination with released trimmers, this way of controlling the direction of flight is a great advantage. Even in nil wind conditions, you can trust the Charger 2 to make your landings safe and predictable. The landing flare is pleasantly definable. While losing speed, soft landings are easy to perform as the canopy creates ample buoyancy when making the final pull.
MAC PARA design and construction
Charger 2 is another quality product from MAC PARA. The elliptical canopy has 50 cells and an aspect ratio of 5.22.
The construction of the diagonal ribs and load-bearing straps is transmitting forces from the lines, keep the canopy surface clean and give the wing stability. The glider is light thanks to lighter materials. The weight of the medium size, including the sophisticated risers with stainless steel trimmer clips is 5.5 kg. This is an all around fun glider, perfect for playing in all conditions, with performance to spare!
Standard Features add to your Enjoyment
With the serial risers, which include trimmers and speed system, the Charger 2’s speed range can easily be dialed in to meet the pilot’s wishes. With trimmers pulled in the Charger 2’s climb is similar to non-reflex paragliders. With trim out, speed and penetration increase significantly. For flights of long duration in full reflex mode the Charger 2 can be comfortably controlled using the wingtip steering handles. They are perfectly placed on the risers and ingeniously designed to mimic the lighter forces of serial brakes.
Great attention to details
The Charger 2 comes standardly equipped with ergonomically thin, semi-rigid brake handles, including swivels, each with two neodymium magnets, which makes it easier to attach the steering handles to the D straps during flight. The risers feature two pulley settings for low or high brakes depending on your paramotor. Wing tip steering handles are held in position using elastic lines and can be secured to the risers by either neodymium magnets or with press button snaps. There are small self-cleaning canopy holes on the stabilizers.
Quality you can Trust
The use of high-quality materials and constant quality control throughout the manufacturing process produces high quality products. We use Aramid-Kevlar lines of proven series that guarantee correct geometry of your canopy throughout its life. Thanks to their flight characteristics and popularity among pilots, the Chargers retain a high utility value and, in the event of a sale, a high economic value.
What should I choose?

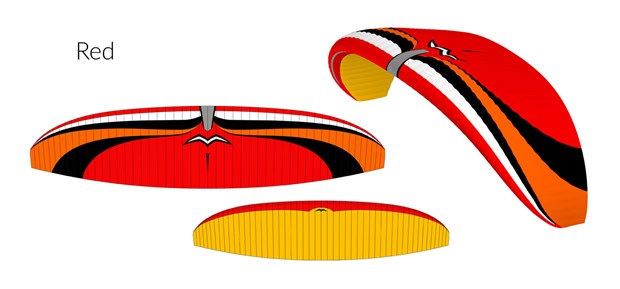

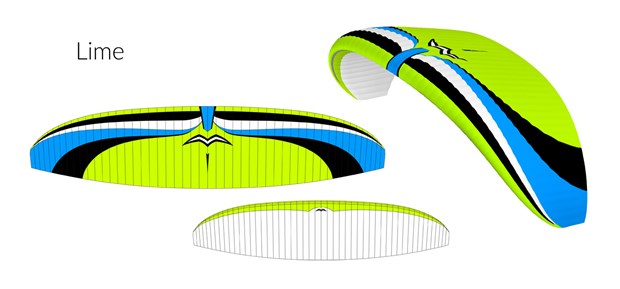

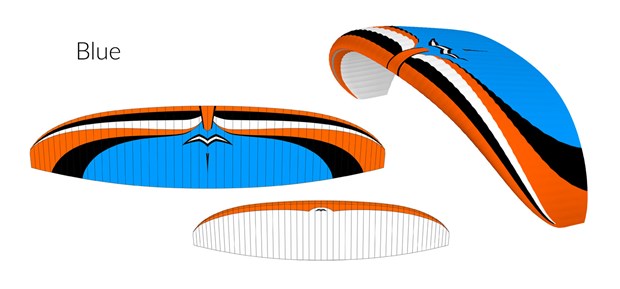

You can choose from three serial designs. And if you have different color preferences, below you have the luxury of creating your own design! However, a special design comes at an additional cost and colors are limited by the availability of fabrics.
Through the use of high-grade materials along with constant attention to quality control throughout MAC PARA’S manufacturing process you are assured of getting a superbly crafted paraglider.
The MAC PARA Charger 2 is guaranteed to energize you!
Technical Specifications
Charger 2 | 18 (XXS) | 21 (XS) | 23 (S) | 25 (M) | 28 (L) | 31 (XL) | 34 (XXL) |
---|---|---|---|---|---|---|---|
Zoom flat[%] | 81.3 | 87.0 | 91.5 | 95.3 | 100 | 105.5 | 110.0 |
Area flat[m2] | 18.47 | 21.16 | 23.40 | 25.38 | 27.95 | 31.11 | 33.82 |
Area projected[m2] | 16.44 | 18.82 | 20.82 | 22.59 | 24.87 | 27.68 | 30.09 |
Span flat[m] | 9.82 | 10.51 | 11.05 | 11.51 | 12.08 | 12.74 | 13.29 |
Aspect ratio flat | 5.22 | 5.22 | 5.22 | 5.22 | 5.22 | 5.22 | 5.22 |
Root cord[m] | 2.32 | 2.48 | 2.61 | 2.72 | 2.85 | 3.01 | 3.14 |
Cells | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Weight[kg] | 5.0 | 5.2 | 5.4 | 5.5 | 5.6 | 5.9 | 6.5 |
Weight range powered *[kg] | 75 – 115 | 85 – 120 | 95 – 130 | 102 – 140 | 110 – 160 | 130 – 180 | 140 – 240 |
Weight range powered *[lbs] | 165 – 254 | 187 – 265 | 209 – 287 | 225 – 309 | 243 – 353 | 287 – 397 | 309 – 529 |
Recommended weight range for foot launch *[kg] |
75 – 100 | 85 – 105 | 95 – 115 | 102 – 125 | 110 – 145 | 130 – 165 | 140 – 185 |
Recommended weight range for foot launch *[lbs] |
165 – 220 | 187 – 231 | 209 – 254 | 225 – 276 | 243 – 320 | 287 – 364 | 309 – 408 |
Min. speed[km/h] | 24 – 27 | 24 – 27 | 24 – 27 | 24 – 27 | 24 – 27 | 24 – 27 | 24 – 27 |
Speed trimmers closed[km/h] | 37 – 41 | 37 – 41 | 37 – 41 | 37 – 41 | 37 – 41 | 37 – 41 | 37 – 41 |
Speed trimmers open[km/h] | 47 – 51 | 47 – 51 | 47 – 51 | 47 – 51 | 47 – 51 | 47 – 51 | 47 – 51 |
Top speed (acc.+trim open)[km/h] | 57 – 61 | 57 – 61 | 57 – 61 | 57 – 61 | 57 – 61 | 57 – 61 | 57 – 61 |
Glide ratio | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 |
Min. sink rate[m/s] | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
Certificate | DGAC | DGAC | DGAC | DGAC | DGAC | DGAC | DGAC |
* Powered pilot equipped = weight naked + approx. 35 – 40 Kg (-55kg by trikes) |
Technical Specifications for Charger 2 with motor up to 45kW
CHARGER 2 – 45KW | 28 (L) | 31 (XL) | 34 (XXL) |
---|---|---|---|
Zoom flat[%] | 100 | 105.5 | 110 |
Weight[kg] | 5.6 | 5.9 | 6.5 |
Weight range powered *[kg] | 145 – 210 | 165 – 225 | 180 – 240 |
Weight range powered *[lbs] | 320 – 463 | 364 – 496 | 397 – 529 |
Min. speed[km/h] | 26 – 29 | 26 – 29 | 26 – 29 |
Speed trimmers closed[km/h] | 40 – 43 | 40 – 43 | 40 – 43 |
Speed trimmers open[km/h] | 50 – 53 | 50 – 53 | 50 – 53 |
Top speed (acc.+trim open)[km/h] | 59 – 63 | 59 – 63 | 59 – 63 |
Certificate | DGAC | DGAC | DGAC |
Color Design
Custom designed colors are possible at an extra fee. Please go to www.macpara.com, find the glider, and go through the custom design option for the glider. Typical charges are in excess of $700 and may require 12 to 16 week lead times to produce the glider. After designing the glider, submit the resulting PDF file to Beery@USWingnuts.com to get a finalized quote.
