Description
Charger 2 Trike
Quality you can trust
Charger 2 continues on the success story and good reputation won by Charger 1. Just the perfect glider for powered flying. The easy start and flight characteristics have won the hearts of many paramotor pilots. Based on the Charger 2, we again developed the Charger 2 Trike designed for flying with heavy tandem trikes.
Great performance
The glider is resistant to collapses even in rough air and provides good performance thanks to the customized reflex airfoils. The smooth shape of the airfoil nose is maintained by smart lasting combination of Mylar reinforcement and nitinol rods. The additional unique reinforcing system of the leading edge and mini ribs on trailing edge provide an advantage that is resulting in a smooth ride with exceptional penetration. The Charger 2 Trike features excellent stability throughout the full weight and speed range. The canopy is well dampened without roll tendencies, but offers good flexibility and agility in turns. The Charger 2 Trike is suitable for a wide range of trike units.
Great attention to details

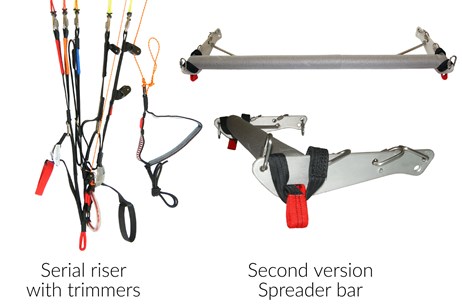

The serial risers feature trimmers on D and A straps and two pulley settings for low or high brakes adjustments. The Charger comes standardly equipped with ergonomically thin, semi-rigid brake handles, including swivels, neodymium magnets and rubber lines. The longer range of trim system offers you more safety and control of speed when you have a lighter passenger or when the wind is strong. Maximum speed can be achieved with trimmers on D straps fully released and trimmers on A straps fully closed. Convenient self-cleaning exit “holes” on the wing tips will help remove any sand, grass or small stones from the glider.
For order the Charger Trike can be fitted with a special iron/aluminum spreader bar. The angle of attack is changed from adjustment system placed on the trike. See photo Charger Trike spreader bar.
Quality you can Trust
The use of high-quality materials and constant quality control throughout the manufacturing process produces high quality products. We use a combination of Dynema / Aramid-Kevlar lines of proven series that guarantee correct geometry of your canopy throughout its life.
You can choose from three serial designs. And if you have different color preferences, you have the luxury of making your own design! Through the use of high-grade materials along with constant attention to quality control throughout MACPARA’S manufacturing process you are assured of getting a superbly crafted paraglider.
The Charger 2 Trike is guaranteed to energize you!
Technical Specifications
| Charger 2 Trike | 39 | 43 |
|---|---|---|
| Zoom flat[%] | 95.18 | 100 |
| Area flat[m2] | 39.25 | 43.32 |
| Area projected[m2] | 34.92 | 38.55 |
| Span flat[m] | 14.31 | 15.04 |
| Aspect ratio flat | 5.22 | 5.22 |
| Root cord[m] | 3.38 | 3.55 |
| Cells | 50 | 50 |
| Weight[kg] | 8.60 | 9.15 |
| Weight range powered *[kg] | 180 – 450 | 220 – 450 (475**) |
| Weight range powered *[lbs] | 397 – 992 | 485 – 992 (1047**) |
| Min. speed[km/h] | 26 – 32 | 26 – 32 |
| Trim speed[km/h] | 40 – 50 | 40 – 50 |
| Top speed (acc.+trim open)[km/h] | 50 – 60 | 50 – 60 |
| Certificate | DGAC | DGAC |
| * Powered pilot equipped = weight naked + approx. 35 – 40 Kg (-55kg by trikes)
** using the corresponding rescue system |
||
Used Materials
| Item | Material |
|---|---|
| Surface Top/Bottom Leading Edge: | Skytex 38 Classic, 38 g/m2 |
| Surface Top Trailing Edge: | Skytex 38 Classic, 38 g/m2 |
| Surface Bottom: | Skytex 32 Classic, 32 g/m2 |
| Main ribs: | Skytex 40/32 Hard, 40/32 g/m2 |
| Diagonal ribs: | Skytex 40/32 Hard, 40/32 g/m2 |
| Minor ribs: | Skytex 32 Hard, 32 g/m2 |
| Upper lines: | Edelrid Aramid/Kevlar 7343 – 75 kg, – 90 kg, 7950 – 80, –100 kg |
| Main lines: | Edelrid Aramid/Kevlar 7343 –340 kg, –230 kg, –190 kg |

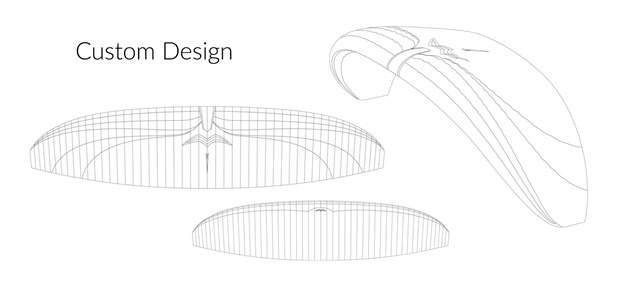

Color Design
Custom designed colors are possible at an extra fee. Please go to www.macpara.com, find the glider, and go through the custom design option for the glider. Typical charges are in excess of $700 and may require 12 to 16 week lead times to produce the glider. After designing the glider, submit the resulting PDF file to Beery@USWingnuts.com to get a finalized quote.
