Description
Faster Performance Design
The shape of the airfoil provides most accessible high performance in all settings of trim positions. In practice, this means lower fuel consumption and a higher rate of climb. The advantage is longer endurance in the air and longer distances flown. In the design of the Colorado 2, top technologies from the higher range of our successful gliders are used. The Colorado’s trimmer range offers a wide range of speed settings, from slow to all out fast.
Exceptional agility
The Colorado is not just a ‘speed machine’. With agile and intuitive handling, it is also incredibly delightful to fly. For those pilots who like to carve turns and play in the air it will definitely put a smile on your face! The Colorado is very maneuverable, with pleasantly moderate brake pressure. The Colorado 2 is equipped with 2D steering as standard. Wingtip steering toggles for faster trim settings (accelerated flight), are offering yet another reason why you will be more comfortable on longer flights.
Easy and user friendly
The weight of the canopy is low thanks to the use of lighter materials. The way of inflating the canopy is smooth with a steady rising. The canopy stays over pilots head, with no tendency to pitch forward or fall back. It is just as easy to “kite” the Colorado 2 even with the trims fully open. When accelerating the buoyancy level is pleasant to read in the harness and can be easily controlled by the steering lines. The Colorado 2 excels in stability in all axes throughout the weight and speed range. Roll movements of the canopy are very well damped and when roll initiated the canopy stabilizes itself after few swings. Landings with the Colorado 2 are easy. The landing flare is pleasantly definable. While losing speed, soft landings are easy to perform as the canopy creates ample buoyancy when making the final pull.
Materials
It benefits from the latest technologies. The rib reinforcement system is made using nitinol wires to optimally support the shape of the profiles and guarantees clean surface of the canopy, even when the glider is folded carelessly. The shape of the leading edge and thus aerodynamic cleanliness are achieved by high-quality processing using plastic rods on LE panels. The canopy combines classic and lightweight Polyamid 6.6, PU fabrics. RipStop 38 g/m² is used on the heavily stressed leading edge. The main part of the canopy is made RipStop 32 g/m² and RipStop, 32 g/m² hard coating on profiles. The risers are well thought out and designed to be pilot-friendly, keeping them simple and easy to use.
Great attention to details
The risers are well thought out and designed to be pilot-friendly, keeping them simple and easy to use. The Colorado 2 comes standardly equipped with ergonomically thin, semi-rigid steering handles, including swivels, each with two neodymium magnets, which makes it easier to attach the steering handles to the D straps during flight. The D risers feature two pulley settings for low or high steering depending on your paramotor. Wing tip steering handles are held in position using elastic lines and can be secured to the risers by either neodymium magnets or with press button snaps. There are small self-cleaning canopy holes on the stabilizers.
Make it Yours …
Contact your local Mac Para dealer to help you choose the right size to maximize the performance of your new Colorado. You can choose from three serial designs, or you can have fun designing your own unique color design (available for an extra fee). The choice is yours!
Sizes: The Colorado 2 is available in sizes 18, 20, 22, 24, 26, 29, 31.

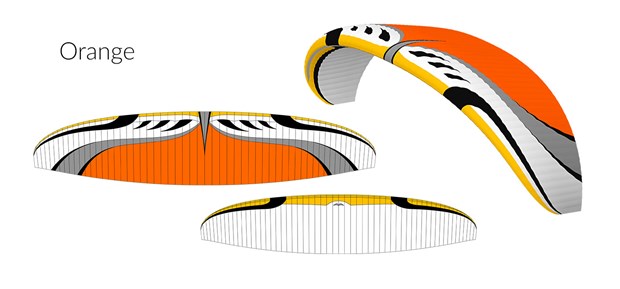

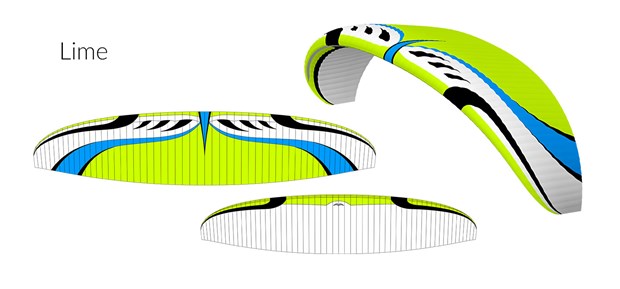

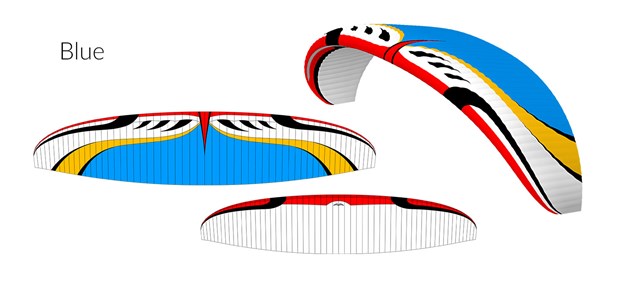

Serial colors designs are called Orange, Lime and Blue.
Technical Specifications
Colorado 2 | 18 (XXS) | 20 (XS) | 22 (S) | 24 (M) | 26 (L) | 29 (XL) | 31 (XXL) |
---|---|---|---|---|---|---|---|
Zoom flat[%] | 83 | 87.5 | 92 | 96 | 100 | 105 | 110 |
Area flat[m2] | 17.88 | 19.88 | 21.97 | 23.92 | 25.96 | 28.62 | 31.41 |
Area projected[m2] | 15.78 | 17.53 | 19.38 | 21.10 | 22.90 | 25.25 | 27.71 |
Span flat[m] | 10.01 | 10.55 | 11.10 | 11.58 | 12.06 | 12.66 | 13.27 |
Aspect ratio flat | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 |
Root cord[m] | 2.25 | 2.37 | 2.49 | 2.6 | 2.71 | 2.85 | 2.98 |
Cells | 58 | 58 | 58 | 58 | 58 | 58 | 58 |
Weight[kg] | 4.2 | 4.5 | 5.0 | 5.2 | 5.4 | 5.7 | 6.1 |
Weight range powered *[kg] | 80 – 120 | 84 – 125 | 95 – 130 | 105 – 145 | 115 – 160 | 128 – 175 | 140 – 190 |
Weight range powered *[lbs] | 176 – 264 | 185 – 275 | 209 – 286 | 231 – 319 | 253 – 352 | 282 – 385 | 308 – 418 |
Recommended weight range for foot launch *[kg] |
80 – 105 | 84 – 110 | 95 – 115 | 105 – 130 | 115 – 145 | 128 – 160 | 140 – 175 |
Recommended weight range for foot launch *[lbs] |
176 – 231 | 185 – 242 | 209 – 253 | 231 – 286 | 253 – 319 | 282 – 352 | 308 – 385 |
Min. speed[km/h] | 25 – 27 | 25 – 27 | 25 – 27 | 25 – 27 | 25 – 27 | 25 – 27 | 25 – 27 |
Speed trimmers closed[km/h] | 40 – 44 | 40 – 44 | 40 – 44 | 40 – 44 | 40 – 44 | 40 – 44 | 40 – 44 |
Speed trimmers open[km/h] | 52 – 56 | 52 – 56 | 52 – 56 | 52 – 56 | 52 – 56 | 52 – 56 | 52 – 56 |
Top speed (acc.+trim open)[km/h] | 62 – 66 | 62 – 66 | 62 – 66 | 62 – 66 | 62 – 66 | 62 – 66 | 62 – 66 |
Certificate | DGAC | DGAC | DGAC | DGAC | DGAC | DGAC | DGAC |
* powered pilot equipped = weight naked + 35-40 kg (-55kg by trikes). Maximum weights of Colorado 18 and Colorado 21 are increased to satisfy competition pilot`s needs. |
Technical Specifications for Colorado 2 with motor up to 45kW
Colorado 2 | 26 (L) | 29 (XL) | 31 (XXL) |
---|---|---|---|
Weight[kg] | 5.4 | 5.7 | 6.1 |
Weight range powered *[kg] | 135 – 200 | 150 – 215 | 170 – 240 |
Weight range powered *[lbs] | 297 – 440 | 330 – 473 | 374 – 528 |
Min. speed[km/h] | 27 – 33 | 27 – 33 | 27 – 33 |
Speed trimmers closed[km/h] | 43 – 48 | 43 – 48 | 43 – 48 |
Speed trimmers open[km/h] | 57 – 63 | 57 – 63 | 57 – 63 |
Certificate | DGAC | DGAC | DGAC |
* Powered pilot equipped = weight naked + approx. 35 – 40 Kg (-55kg by trikes) |
Used Materials
Item | Material |
---|---|
Surface Top Leading Edge: | Polyamid 6.6, RIPSTOP, 38 g/m2 |
Surface Top Trailing Edge: | Polyamid 6.6, RIPSTOP, 32 g/m2 |
Surface Bottom: | Polyamid 6.6, RIPSTOP, 38/32 g/m2 |
Main ribs: | Polyamid 6.6, RIPSTOP, 40 g/m2 |
Diagonal ribs: | Polyamid 6.6, RIPSTOP, 40/32 g/m2 |
Minor ribs: | Polyamid 6.6, RIPSTOP, 32 g/m2 |
Upper lines: | Aramid/Kevlar, Dynema 8000U -50;-70; -90 kg, PPSLS -180 kg |
Main lines: | Aramid/Kevlar, Dynema 7343 -90 kg, -140 kg PPSL -200 kg, -260 kg |
Color Design

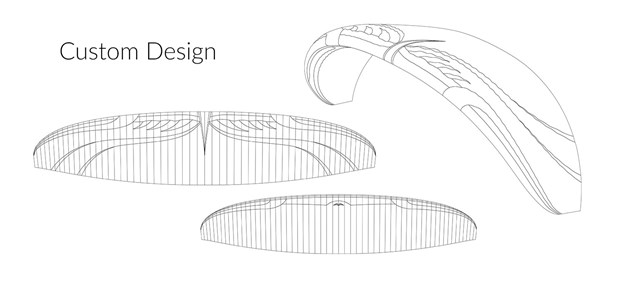

Custom designed colors are possible at an extra fee. Please go to www.macpara.com, find the glider, and go through the custom design option for the glider. Typical charges are in excess of $700 and may require 12 to 16 week lead times to produce the glider. After designing the glider, submit the resulting PDF file to Beery@USWingnuts.com to get a finalized quote.
